This dashboard set provides continuous monitoring and assessment of drinking water quality across multiple assets and individual treatment points. It enables operators and decision-makers to quickly understand the overall water quality status at plant level.
The Water Quality Status Main dashboard provides a centralized overview of water quality conditions across all registered assets. A high-level registration panel shows the number of monitored assets, while a geographic map displays asset locations to support situational awareness across regions.

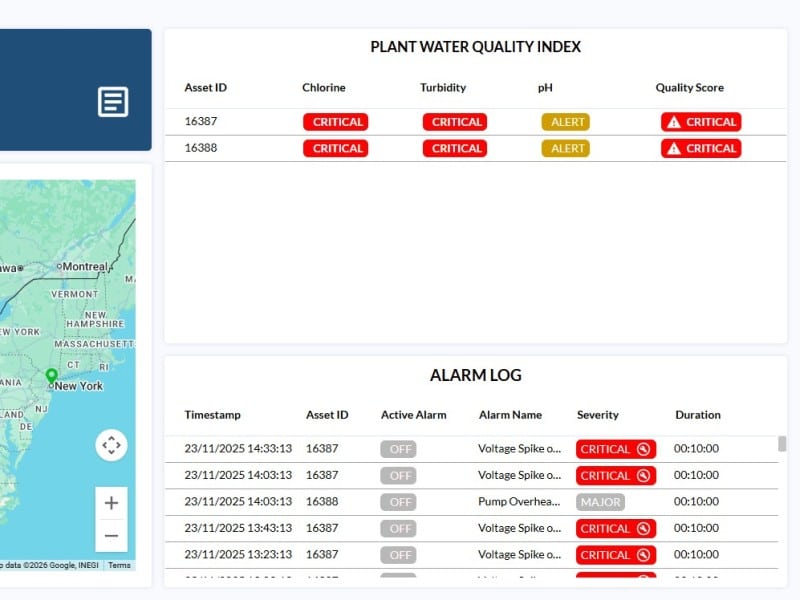

A Plant Water Quality Index table summarizes the quality status for each asset based on chlorine, turbidity, and pH measurements. Each parameter is evaluated individually and contributes to an overall quality score, which is displayed using clear color-coded indicators. This allows operators to instantly identify which assets are operating within acceptable limits and which require immediate attention.
An integrated alarm log provides visibility into recent and historical quality-related alarms, including severity, duration, and affected assets. This supports rapid escalation, compliance reporting, and trend-based risk assessment.
The main dashboard is designed for supervisory and operational roles that require fast identification of water quality risks across multiple plants or sites.
Business Value
• Enable rapid identification of water quality issues across all monitored assets
• Improve situational awareness through a centralized quality index
• Support regulatory compliance with continuous quality monitoring
• Reduce response time by highlighting critical assets immediately
• Improve coordination between operations, maintenance, and quality teams
Core Functionalities
• Multi-asset water quality indexing based on chlorine, turbidity, and pH
• Color-coded quality status indicators for fast decision-making
• Geographic visualization of asset locations
• Centralized alarm log for quality-related events
• Drill-down navigation to asset-level dashboards
Dashboard 2 Overview – Water Quality Status Asset View

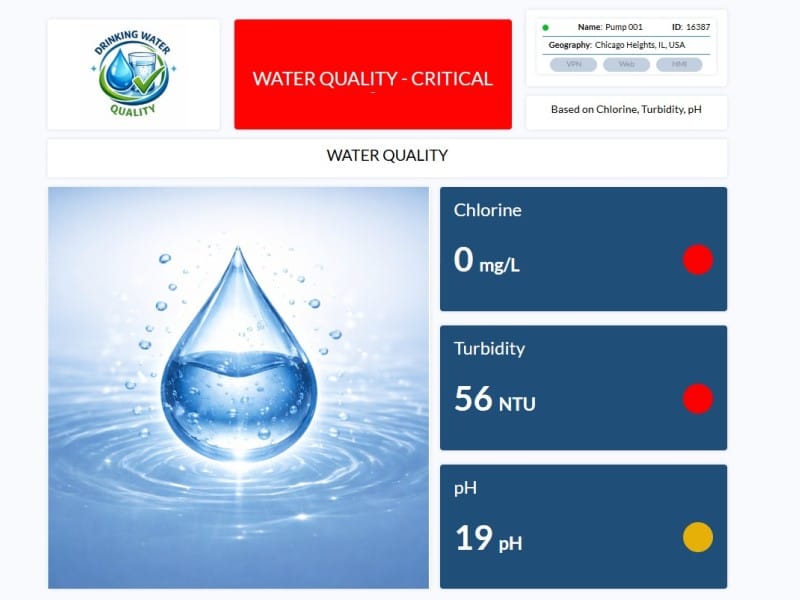

The Water Quality Status Asset dashboard provides a detailed view of water quality conditions for a selected asset. At the top of the dashboard, a prominent status indicator summarizes the current water quality condition using color coding derived from chlorine, turbidity, and pH values. This immediately communicates whether the asset is operating within acceptable limits or in a degraded or critical state.
Below the summary, individual KPI cards display current values for chlorine, turbidity, and pH, each with a clear visual status indicator. These KPIs represent the core components of drinking water quality and allow operators to quickly identify which parameter is driving the overall quality status.
Historical trend charts for chlorine, turbidity, and pH provide context and support deeper analysis. Operators can observe stability, gradual drift, or sudden deviations that may indicate dosing issues, filtration problems, sensor faults, or source water changes.
This asset-level view supports root-cause analysis, corrective action planning, and ongoing compliance verification for individual treatment systems.
Business Value
• Enable precise diagnosis of water quality issues at asset level
• Support compliance by monitoring critical drinking water parameters
• Reduce risk to public health through early detection of quality deviations
• Improve troubleshooting efficiency with historical trend analysis
• Support operational confidence with transparent quality indicators
Core Functionalities
• Asset-level water quality status based on combined KPI evaluation
• Real-time monitoring of chlorine, turbidity, and pH
• Color-coded KPI indicators highlighting abnormal conditions
• Historical trend analysis for each quality parameter
• Integration with alarms and quality events for traceability
