This dashboard provides a real-time health assessment of a drinking water treatment plant by continuously evaluating treated water flow rate and overall water quality. It enables operators to determine whether the plant is producing compliant drinking water.
Dashboard Overview

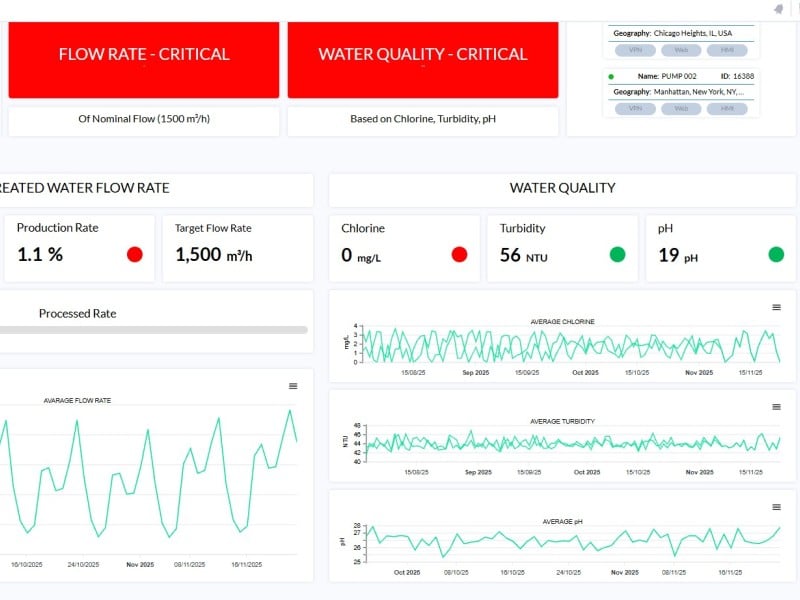

The dashboard presents a consolidated system health view based on two primary performance indicators: treated water flow rate and water quality. Prominent health indicators at the top of the dashboard summarize the current status of each KPI using color-coded grades, allowing operators to quickly identify conditions requiring attention.
The flow rate section evaluates treated water production against the nominal target flow. It displays the current flow rate, production percentage, and processed rate to assess whether operational and demand requirements are being met. Historical flow trends support the identification of sustained underproduction, instability, or operational constraints affecting output.

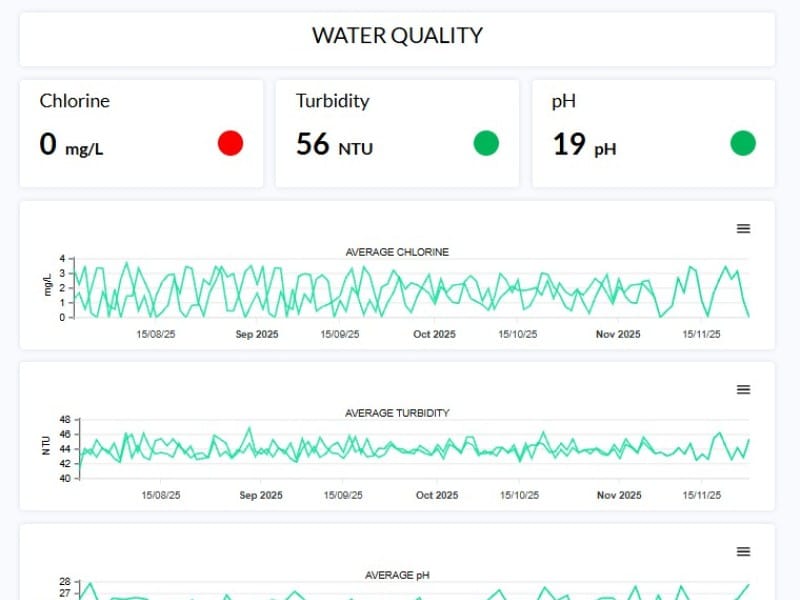

The water quality section provides an aggregated quality score derived from three critical parameters: pH, turbidity, and chlorine. Each parameter is monitored individually while contributing to the overall quality assessment. Trend charts for each parameter enable operators to track stability, detect gradual drift, and identify sudden deviations that may impact compliance or safety.
By combining immediate health grading with historical trend analysis, the dashboard supports both rapid situational awareness and in-depth investigation of flow or quality issues.
Business Value
• Ensure safe drinking water through continuous validation of key water parameters
• Maintain production reliability by monitoring treated water flow against target capacity
• Enable rapid response to critical water quality or supply conditions through clear health grading
• Support regulatory compliance via continuous monitoring of pH, turbidity, and chlorine
• Reduce operational risk through early detection of flow or quality degradation
Core Functionalities
• Flow Rate Health Monitoring to evaluate treated water production versus nominal capacity
• Water Quality Health Scoring based on pH, turbidity, and chlorine measurements
• Color-Coded Health Indicators to highlight critical conditions
• Historical Trend Analysis for flow rate and water quality parameters
• Drill-Down Capability to analyze individual quality KPIs
• Integration with live plant sensors for accurate and real-time system assessment
